Tipper Semi-Trailer

The tipper semi-trailer (dump semi-trailer) is equipped with hydraulic lifting system for automatic gravity unloading. It is widely used to transport bulk loose materials: sand, gravel, soil, crushed stone, coal, ore, construction waste, grain and fertilizer. Main application: mining, quarry, road & bridge infrastructure, construction demolition, port bulk yard and agriculture. Rear tipper and side tipper types available.

Place of Origin: China

Number of axles: 3, 4,5 or more

Payload: 50T ~120T

Application: Transport loose granular and blocky bulk materials

Product Introduction

Tipper semi-trailer (dump semi-trailer) adopts hydraulic tipping system to unload cargo by gravity, specially designed for bulk granular and block materials.

1. Mining & quarry: Transport coal, iron ore, limestone, granite, tailings and overburden from mine pit to crushing plant or stockyard.

2. Infrastructure construction: Deliver sand, gravel, aggregate, fill soil, asphalt for highway, railway, bridge, dam and airport projects.

3. Urban demolition & building sites: Remove excavated earth, broken concrete and construction debris.

4. Energy industry: Transport coal, coke, slag and fly ash for power plants and steel mills.

5. Agriculture: Carry bulk grain, fertilizer and animal feed.

6. Port & bulk yard: Short-distance bulk material transfer and land reclamation earthwork.

Two common designs: rear tipper (end dump) and side tipper. U-type or rectangular cargo box optional.

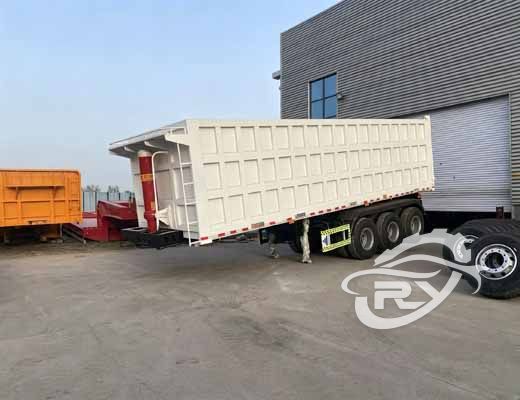

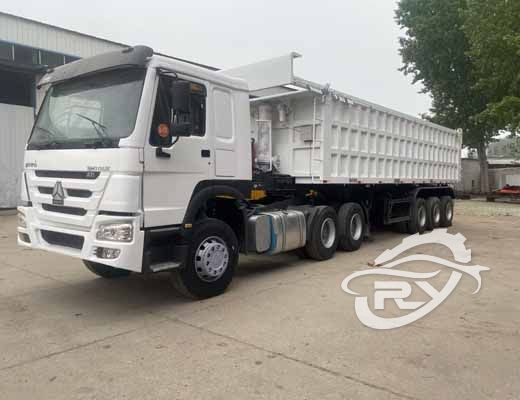

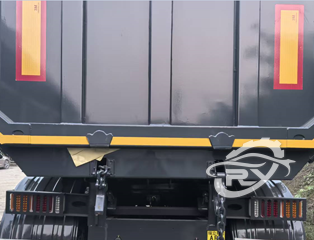

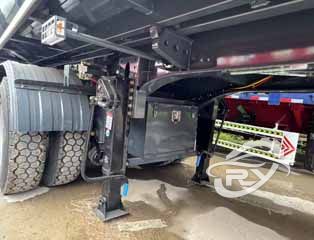

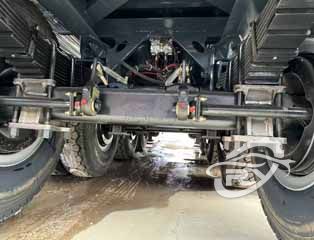

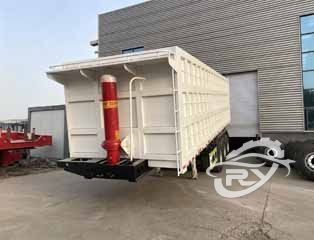

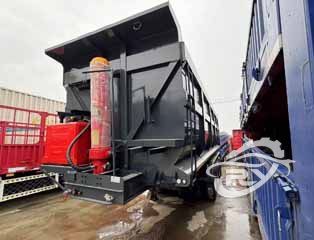

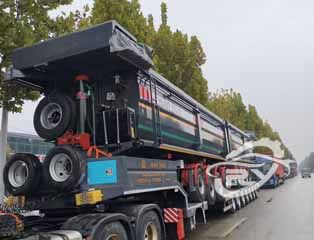

Product Detail Diagram

 

Product Parameters

3 Axles Tipper Semi-Trailer
Number of axles	3pcs
Axle capacity	3x13T (FUWA)
Rated payload	60,000kg
Overall dimension	10,00025003600mm
Inner dimension	930023501500mm (rear door facing open)
Body thickness	Side: 6mm, bottom: 8mm
Lifting system	front lifting
Traction pin	90#
Landing gear	28T
Tire	12R22.5-18PR,12pcs
Spare wheel carrier	1pc
Suspension	factory standard
Leaf spring	10pcs
Air chamber	6pcs
Tool box	1 sets
Brake system	WABCO brake valve
Painting	baking paint
