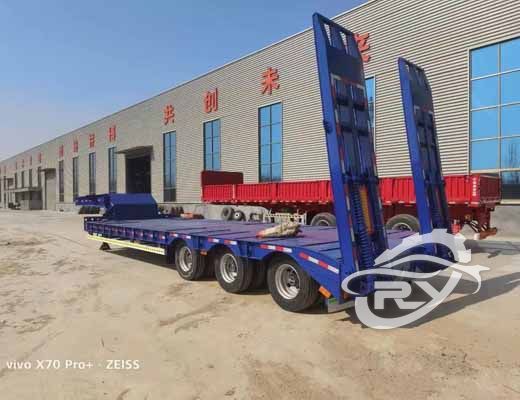

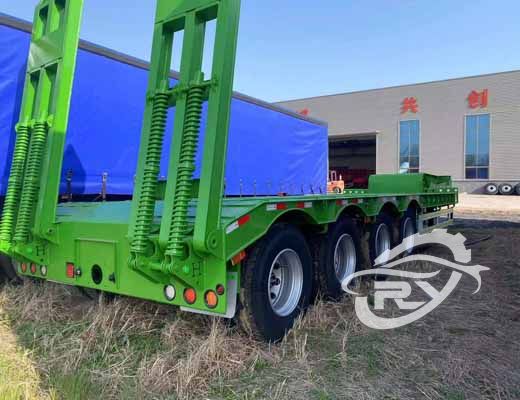

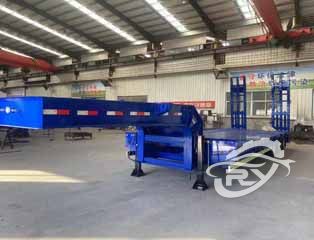

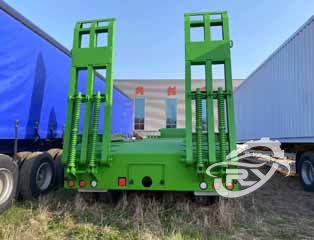

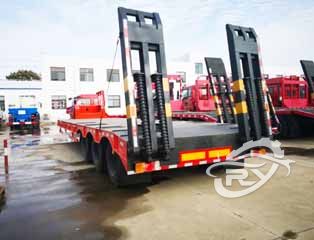

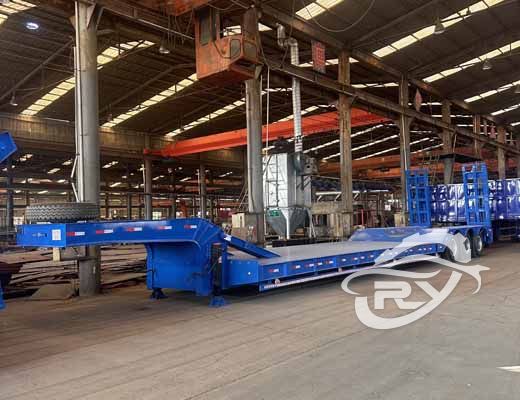

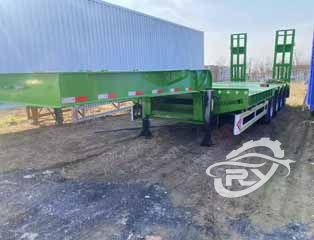

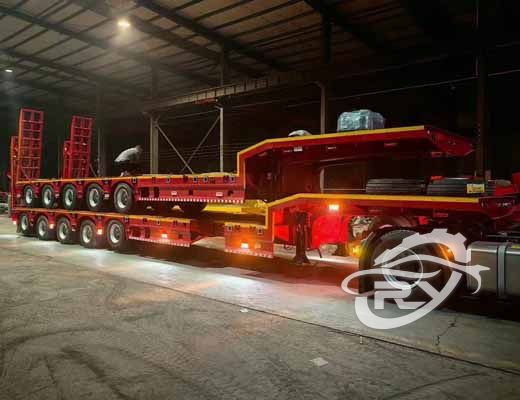

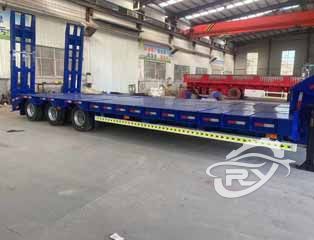

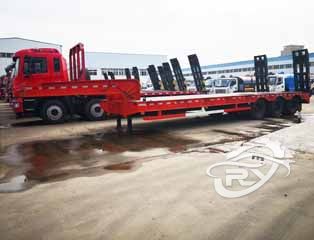

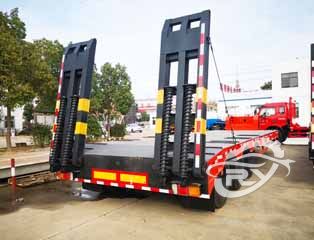

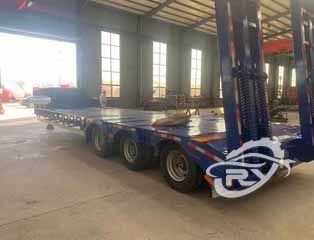

Low Bed Semi trailer

The 3-axle lowbed semi-trailer is a specialized heavy-duty transport vehicle designed for oversized, overweight and irregular cargo, integrating the structural advantages of three axles and the low-profile design of lowbed trailers. It is widely recognized in the global heavy logistics industry for its outstanding performance, safety and versatility.
  • Place of Origin: China
  • Number of axles: 2,3,4,5 or more
  • Payload: 40T ~ 110T
  • Application: Transportation of construction machinery and equipment

Product Introduction

The Low Bed Semi-trailer is mainly used for transporting construction machinery (excavators, loaders, etc.), heavy industrial equipment (generators, transformers, etc.), wind power new energy accessories, large steel structures, agricultural machinery and oversized special cargo. It is widely applied in infrastructure construction, mining, factory relocation, port logistics and cross-border heavy cargo transportation, and is an indispensable core equipment in the global heavy logistics industry.



It is designed in accordance with the road transport regulations of mainstream countries and regions such as Africa, Southeast Asia, the Middle East, Latin America and Europe, complying with local axle load, size and safety standards, and can smoothly pass local vehicle inspections and obtain relevant operation certificates.



We support personalized customization according to customer needs, including adjusting the length and width of the flatbed, the height of the ground clearance, the load capacity, the type of suspension and the configuration of accessories (such as adding hydraulic ramps, tool boxes, etc.). This customization service enables the trailer to fully adapt to the local road conditions and cargo transport characteristics of different countries, meeting the diversified needs of global customers.

Product Parameters


Low Bed Semi Trailer
Number of axles3pcs
Axle capacity3x13T
Saddle no-load height1350mm
Payload60~100T
Overall size13000*3000*3580mm
Traction pin90# JOST
Support legs28T
Tire8.25R22.5
Number of tires12+1 pcs
Spare wheel carrier1pc
Height of the longitudinal beam500mm
Thickness of the upper and lower wing platesUpper: 14mm
Down: 16mm
Specification of side beamThree-in-one 260#
Specification of the through beam12#
Suspension systemStandard machinery
Floor form/thicknesscheckered plate/4mm
Number of leaf spring10pcs
Tool boxStandard
Colorcustomizable


Note: Technical specifications may change without notice due to ongoing technological advancements.
