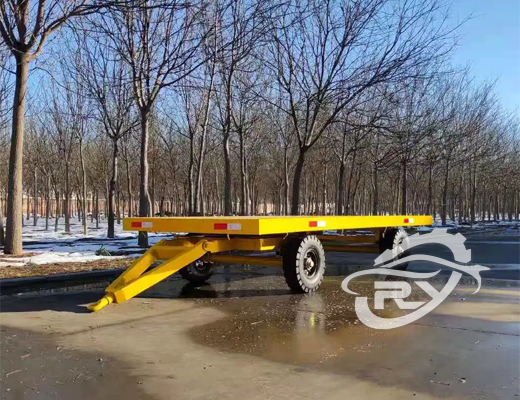

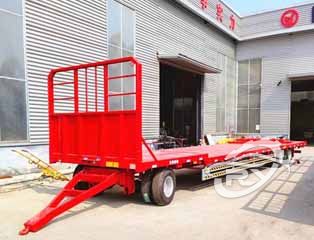

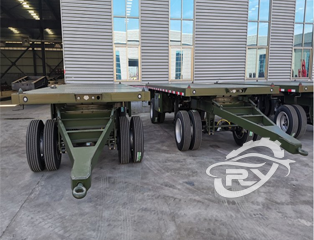

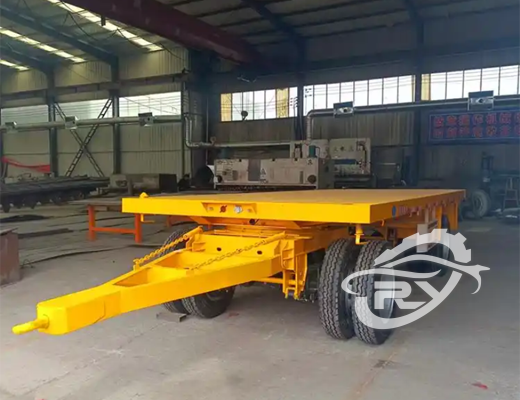

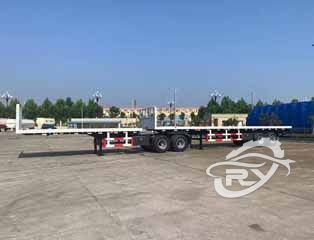

Flat Bed Full Trailer

Flatbed full trailer features self-bearing structure and open deck. It is flexible to load heavy, oversized cargo like construction machinery and steel. The tractor can be detached to improve fleet efficiency with low maintenance.

Place of Origin: China

Number of axles: 2, 3, 4

Payload: 20T ~60T

Application: It mainly transports construction machinery such as excavators and loaders, steel, pipes and prefabricated components

Product Introduction

Key Advantages of Flatbed Full Trailer

1. Self-load bearing structure：The trailer carries all cargo weight. The tractor bears no load and can be separated freely for other transport tasks, raising vehicle utilization.

2. Open flat deck：No side panels. Cargo can be loaded and unloaded from rear and both sides by forklift or crane, great for oversized and irregular goods.

3. Robust heavy-duty frame：High strength welded steel frame, stable performance on rough mine and site roads.

4. Strong versatility：Suitable for construction machinery, steel materials and containers. One trailer for multiple cargo types.

5. Easy maintenance：Simple overall structure, convenient inspection and low maintenance cost.

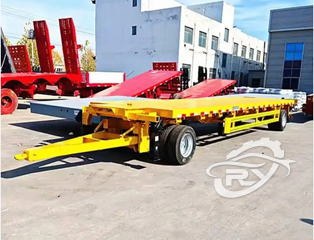

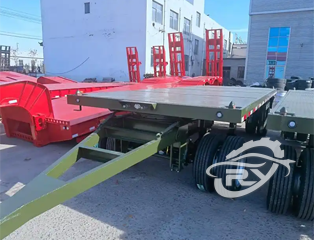

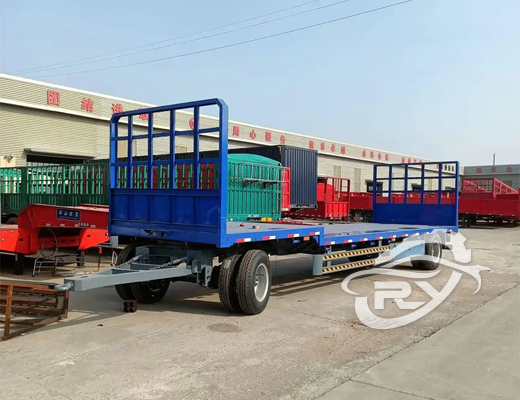

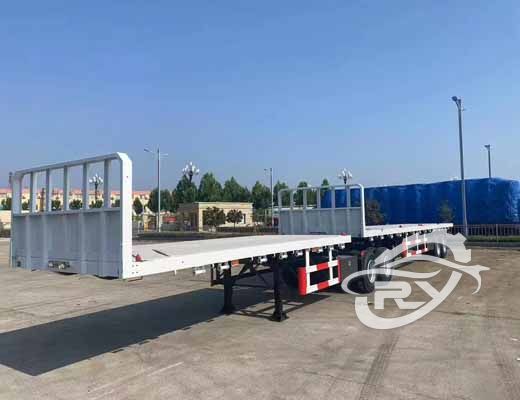

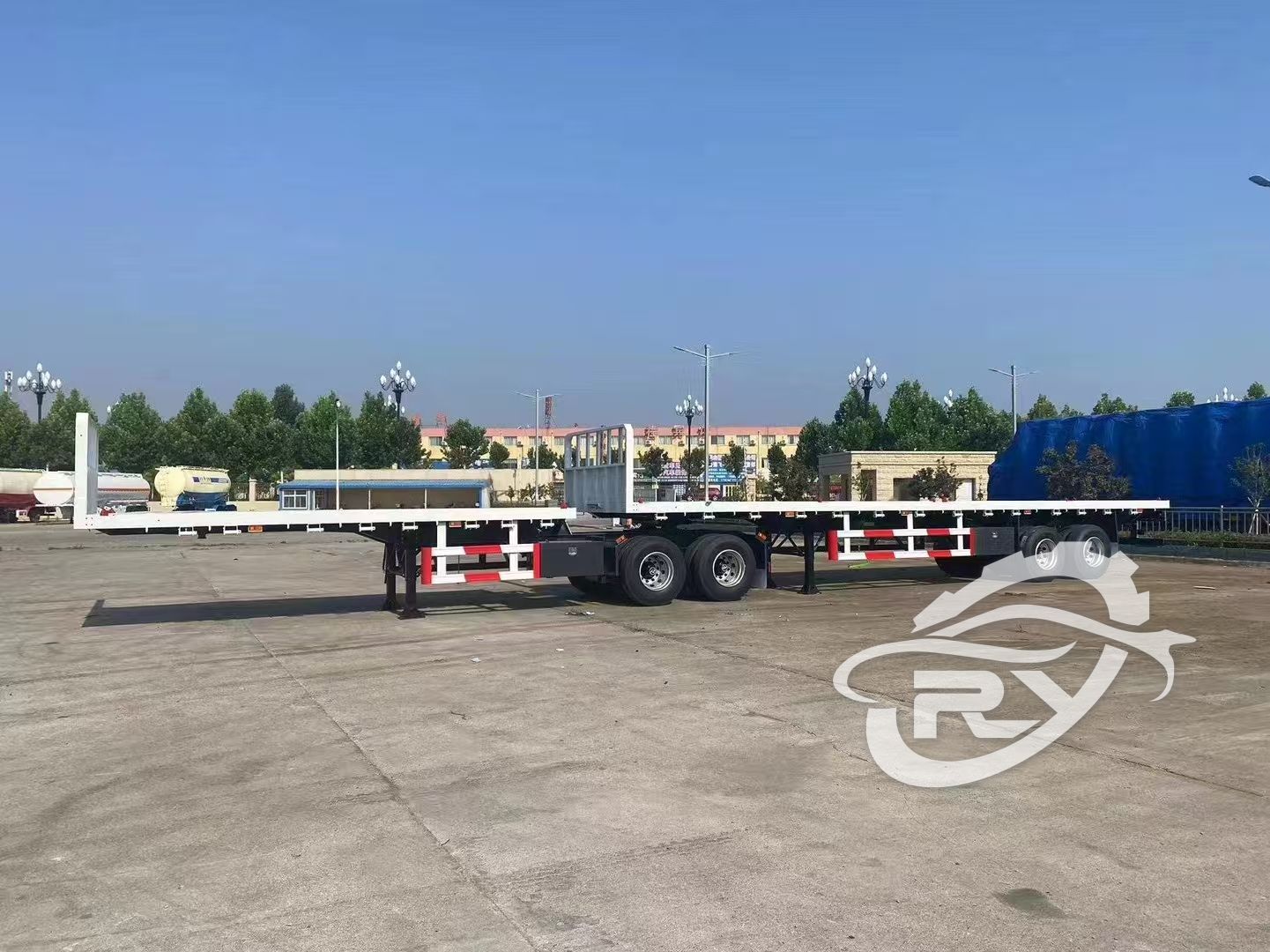

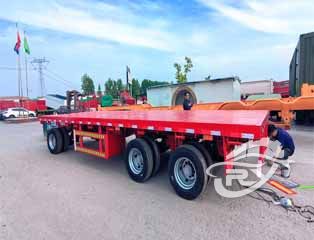

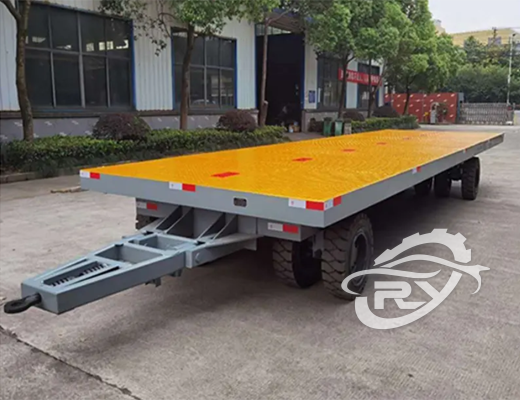

Product Detail Diagram

 

Product Parameters

Flat Bed Full Trailer
Number of axles	3pcs
Axle capacity	3x13T
Payload	30~60T
Overall size	850025001050mm
Traction pin	General traction pin connection head, suitable for forklifts, tractors, and light-duty trailers for towing
Support legs	28T
Tire	12R22,5
Number of tires	12+1 pcs
Spare wheel carrier	1pc
Loading platform	5-8mm patterned anti-slip steel plate, fully laid
Specification of side beam	16#
Main girder in rigid frame	25# - 40# I-beam main longitudinal beams
Steering mode	The front turntable rotates and turns, with a maximum rotation Angle of 90° and a turning radius of 12 to 18 meters
Tool box	Standard
Color	customizable
