Product Introduction
Our bulk cement tanker semi-trailer is specially designed for dry bulk powder transportation.
1. High-strength tank body: Made of wear-resistant steel plate, light weight yet high rigidity, anti-vibration and anti-deformation during long-distance transportation.
2. Excellent sealing performance: Fully closed tank structure, effectively prevent dust spillage and materials from getting damp, reduce material loss.
3. Efficient pneumatic unloading system: Equipped with reliable air compressor and fluidized bed. Fast discharging speed, low residual rate, saving working time.
4. Stable chassis & suspension: Good shock absorption, safe running on various road conditions, less maintenance trouble.
5. Wide application: Can transport bulk cement, fly ash, lime powder, slag powder, gypsum powder and dry mortar.
6. Customization support: Tank capacity, axle number, color and other specifications can be customized according to client’s requirements.
7. Economic benefit: No need for paper bags, greatly cut packaging cost and labor cost for loading & unloading.

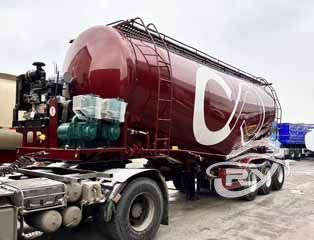

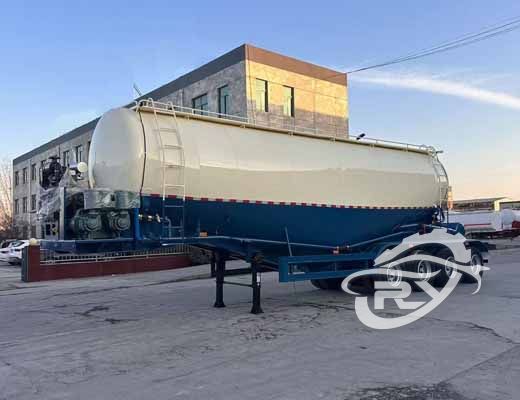

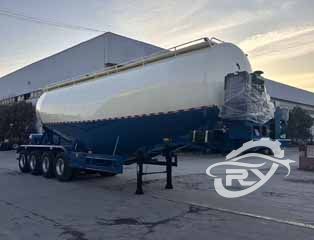

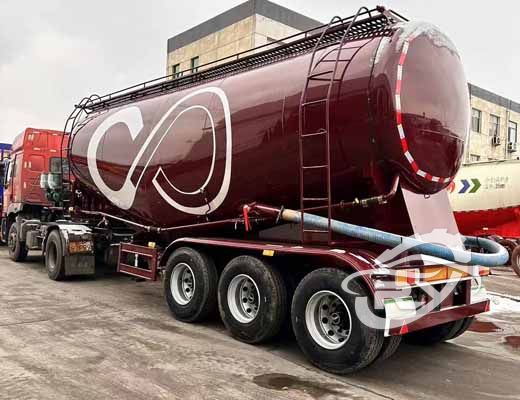

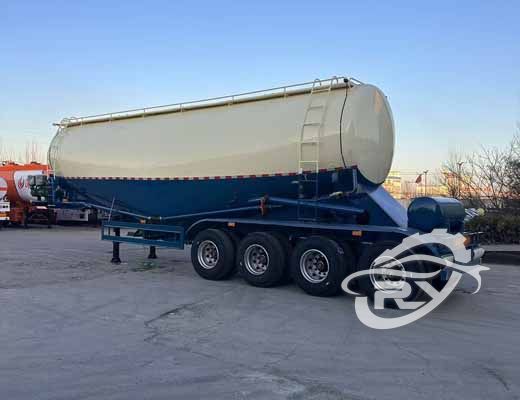

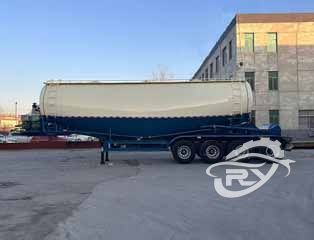

Product Detail Diagram
Product Parameters
| 4 Axles Bulk Cement Tanker Trailer | |
| Overall size | 12500*2550*4000mm |
| Tanker volume | 67,000L (80 ton) |
| Tanker body/head plate | 4mm/5mm, high-strength steel |

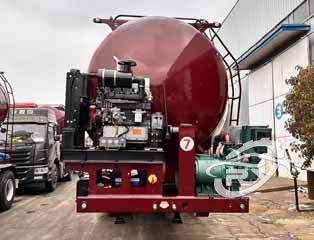

| Diesel engine | Weichai Tianhe 4105, with rain cover |
| Air compressor | Bohai 12m3 double cylinders |
| Compartments | Single compartment, with built-in circular reinforcing ribs. |
| Fluidized bed | Front and rear cabin air compartments, 10 vibration bands. |
| Suspension / Leaf Spring | 8mm/90*13*10 pcs, 4 axles mechanical suspension system. |
| Traction pin | 90mm Fabricated, Traction height: 1380mm |
| Support leg | Fuwa 28T |
| Axle brand | 4pcs*16ton, Drum brake shaft, without ABS |
| Tyre | 12R22.5-16pcs |
| Steel rim | 90-16*16pcs |
| Fender | Irony, 4 axles integration |
| Brake vale | WABCO |
| Electrical circuit | 24V, LED lighting with lampshade |
| Guard bar | Top guardrail of the tank + Anti-slip walkway |
| Ladder | Side ladder is folded and fixed with bolts to the rear tail ladder. |
| Tool box | One on the side, one at the rear tail concealed. |
| Tank cap | 2 internal pressures |
| Discharge valve | 125 butterfly valve |
| Discharging hose | 6m, 1pc |
| Pressure gauge | 2pcs |
| Safety valve | 2pcs |
| Color | Upgrade baking paint, color is optional. |
| Note: The booster valve, exhaust valve, and check valve are all standard default configurations. | |
Note: Technical specifications may change without notice due to ongoing technological advancements.
