Product Introduction

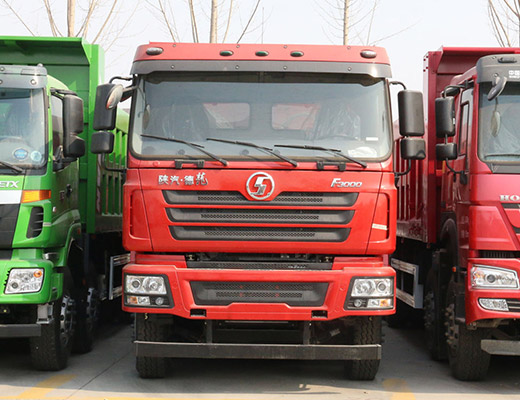

The Shacman F3000 8×4 Dump Truck represents the pinnacle of heavy-duty hauling technology, engineered to tackle the most demanding mining, quarrying, and large-scale construction projects with uncompromising reliability.
Key Advantages:
Superior Load Capacity
8×4 chassis configuration delivers exceptional stability with payload capacity up to 45 tons
Reinforced frame design withstands the toughest working conditions
Optimized weight distribution for maximum productivity
Powerful & Efficient Powertrain
Weichai WP10.380E30 engine (380 HP) with fuel-efficient SCR technology meeting Euro III emission standards
FAST 16-speed manual transmission for optimal power delivery
Heavy-Duty Construction
8mm thick high-strength steel dump body
30mm ultra-thick floor plate for extended service life
Heavy-duty planetary axles with 40-ton capacity
Enhanced Productivity Features
High-performance hydraulic system (≤18s dump cycle)
24-30m³ body capacity options available
Intelligent load monitoring system
Operator-Centric Design

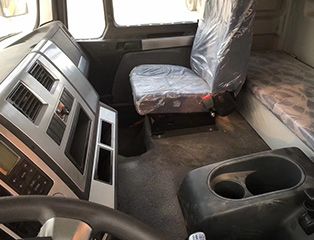

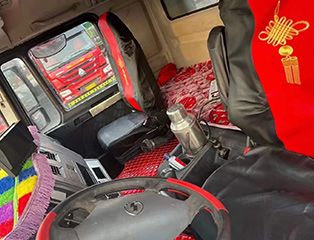

Spacious 4-point air suspension cab
Ergonomic controls with multi-function steering wheel
Advanced noise insulation (≤72dB)
Reliability & Serviceability
50,000km service intervals
Centralized lubrication system
Global 24/7 parts and service support
The Shacman F3000 8×4 Dump Truck sets new standards in heavy hauling performance, combining brute strength with intelligent engineering to deliver maximum productivity in the most challenging environments. With its unmatched payload capacity and legendary Shacman reliability, it's the ultimate choice for operations where downtime is not an option.
Experience the power of 8×4 performance - contact us today for your heavy hauling solution!

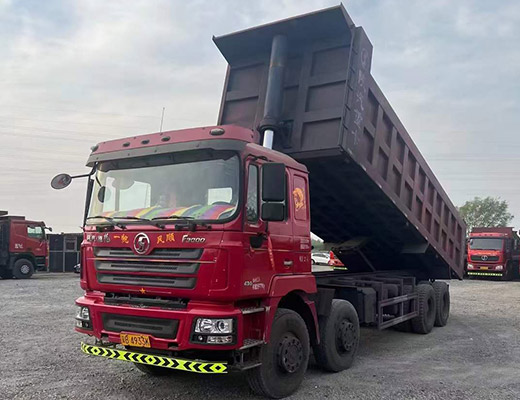

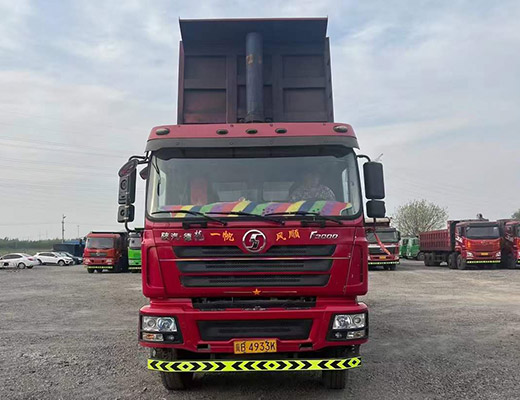

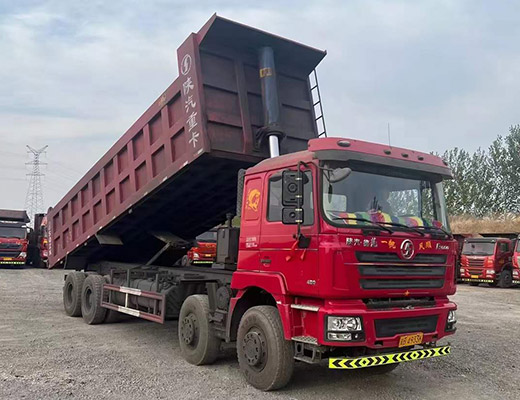

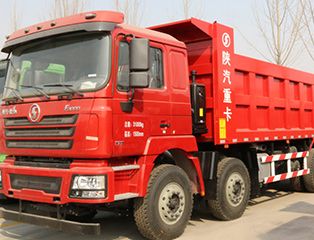

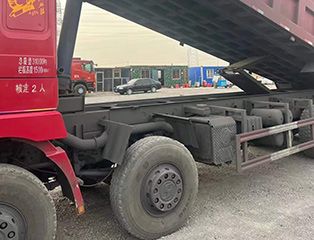

Product Detail Diagram
Product Parameters
| Shacman F3000 8X4 Dump Truck | |||
| Product Name | Shacman 8X4 Dump Truck | Brand | Shacman |
| Origin | China | Model | F3000 |
| Year | 2019 | Type | Lorry |
| Total Weight | 31000(kg) | Curb Weight | 14770(kg) |
| Seats | 3 | Max speed | 77(km/h) |
| Type of Fuel | Diesel | Length | 10530mm |
| Weight | 2490mm | Height | 3450mm |
| Overall Dimensions(L*W*H) | 10530*2490*3450mm | Heavy Duty Dump Truck Shacman | Heavy Duty Dump Truck Shacman |
| ENGINE PARAMETER | |||
| Engine Model | Weichai WP10.380E32 | Engine Power | 280kw |
| Displacement | 9726(ml) | Emission Standard | Euro III |
| CHASSIS PARAMETERS | |||
| Number of Spring Pieces | 4/4/12,13/13/12,5/5/12,4/4/5 | Number of Tire | 12 |
| Tire Type | 12.00R20 18PR | Approach/Depature Angle | 16/25 (°) |
| F/R Overhang | 1525/2030(mm) | Front Track | 2035/2035(mm) |
| Rear Track | 1850/1850(mm) | Number of Axis | 4 |
| Axial load | 6500/6500/18000 | Wheelbase | 1800+3800+1350(mm) |
Note: Technical specifications may change without notice due to ongoing technological advancements.
